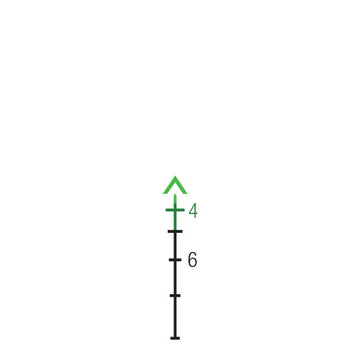

This 4x32 BAC ACOG scope provides a dual-illuminated reticle using fiber optics and tritium for a bright aiming point in any light condition. The ranging reticle is calibrated for M193 ammunition (5.56, 55gr FMJ, common military surplus) fired from a 16" barrel. The chevron reticle is designed to be zeroed using the tip at 100 meters and the BDC goes out to 800 meters. The width of the chevron at the base is 5.5 MOA which represents 19” at 300 meters. This allows range estimation for silhouette targets.
This 4x32 BAC ACOG scope provides a dual-illuminated reticle using fiber optics and tritium for a bright aiming point in any light condition. The ranging reticle is calibrated for M193 ammunition (5.56, 55gr FMJ, common military surplus) fired from a 16" barrel. The chevron reticle is designed to be zeroed using the tip at 100 meters and the BDC goes out to 800 meters. The width of the chevron at the base is 5.5 MOA which represents 19” at 300 meters. This allows range estimation for silhouette targets.
| Weight |
0.422 kg |
| Bindon aiming concept bac |
Yes |
| Exit pupil |
8,13 |
| Eye relief |
38,1 |
| Field of view degrees |
7 |
| Field of view feet |
12,27 |
| Finish |
Matte Black |
| Height |
58,42 |
| Housing material |
Forged Aluminum |
| Illumination source |
Fiber Optics & Tritium |
| Included accessories |
Thumbscrew Flattop Adapter (TA51), 4x32 Scopecoat (TA64), LENSPEN (TA56), Lanyard Assembly for Adjuster Caps (TA71E), Trijicon Logo Sticker (PR15), ACOG Manual, Warranty Card |
| Length |
151,89 |
| Magnification |
4 |
| Mount |
Flattop Thumbscrew Mount (TA51) |
| Objective size |
32 |
| Power source |
Fiber Optics & Tritium |
| Product features |
ALWAYS ON, ALWAYS READY: Most ACOG® models are battery free, featuring a tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light.TAKE CONTROL: Several ACOG models are designed with a user adjustable brightness setting powered by a single AA battery. The 3.5x35 LED and 4x32 LED models both offer six adjustable brightness settings.RUGGED, RELIABLE HOUSING DESIGN: Fixed-power design allows for minimal moving parts to create a nearly indestructible sighting system.“BOTH EYES OPEN” DESIGN: “Both eyes open” shooting using Trijicon's Bindon Aiming Concept™ (BAC) feature allows for improved situational awareness.OUTSTANDING CLARITY: The quality of the glass and multi-coated lenses maximize light-gathering capabilities and clear field of view with zero distortion.EXACT TARGET DISTANCES & HOLDS: Most ACOG models feature a bullet drop compensating and target-ranging reticle for decisive aiming.COMBAT PROVEN: No other magnified optic has been used more in combat than the ACOG.SHOCK-RESISTANT: Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.WATERPROOF: Exceptional waterproof performance that exceeds military standards. Dry nitrogen-filled to eliminate fogging. This optic is tested to withstand and perform in extreme cold and heat with dry-nitrogen filled housing that mitigates fogging. |
| Product short description |
Green Chevron Reticle , Thumbscrew Mount, Tritium / Fiber Optics Illuminated |
| Related products |
TA31-D-100288, |
| Width |
50,8 |
