The first truly high performance optic designed specifically for crossbows. The illuminated reticles accommodate speeds from 300 fps to 340 fps, 340 fps to 400 fps, 400 fps to 440+ fps, feature bolt drop stadia lines out to 80 yards, and has Bad River Outdoors’ patented deer/ elk ranging capabilities. Together, they provide the ability for ranging and hold-over, all in the field of view; the first reticle of its kind. The Trijicon Compact ACOG Mount w/ Q-LOC™ Technology features a Mil-Spec drop test rated 6061-T6 aluminum design, with an easy to use one handed tool less mounting system. The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened. The mount boasts a low weight and low profile design with superior return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail. - Matte black anodized finish - Made in the USA Torque Spec (to rail): Spring Tension Only: 12-16 in. / lbs. Can be Tightened To: 30-38 in. / lbs.
The first truly high performance optic designed specifically for crossbows. The illuminated reticles accommodate speeds from 300 fps to 340 fps, 340 fps to 400 fps, 400 fps to 440+ fps, feature bolt drop stadia lines out to 80 yards, and has Bad River Outdoors’ patented deer/ elk ranging capabilities. Together, they provide the ability for ranging and hold-over, all in the field of view; the first reticle of its kind. The Trijicon Compact ACOG Mount w/ Q-LOC™ Technology features a Mil-Spec drop test rated 6061-T6 aluminum design, with an easy to use one handed tool less mounting system. The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened. The mount boasts a low weight and low profile design with superior return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail. - Matte black anodized finish - Made in the USA Torque Spec (to rail): Spring Tension Only: 12-16 in. / lbs. Can be Tightened To: 30-38 in. / lbs.
| Weight |
0.232 kg |
| Adjustment |
0.14 MOA per Click |
| Bindon aiming concept bac |
Yes |
| Exit pupil |
8,13 |
| Field of view degrees |
4,9 |
| Field of view feet |
8,53 |
| Finish |
Matte Black |
| Height |
66,04 |
| Housing material |
Forged Aluminum |
| Illumination source |
Fiber Optics & Tritium |
| Included accessories |
Trijicon Q-LOC™ Technology , Compact ACOG Scopecoat (TA62), LENSPEN (TA56), Trijicon Logo Sticker (PR15), ACOG Manual, Warranty Card |
| Length |
124,46 |
| Magnification |
3 |
| Max eye relief |
35,56 |
| Mount |
Trijicon Q-LOC™ Technology Mount |
| Objective size |
24 |
| Power source |
Fiber Optics & Tritium |
| Product features |

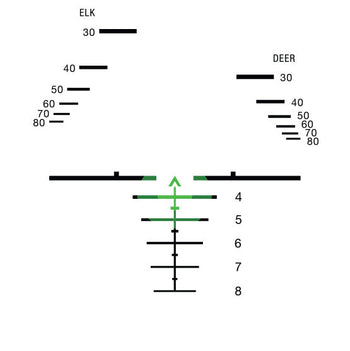

PRECISE TARGETING: The reticle has Bad River Outdoors’ patented deer/ elk ranging capabilities designed to be zeroed at 30 yards with stadia lines out to 80 yards in 5-yard increments.TOTALLY BATTERY-FREE: Trijicon ACOG® XB delivers increased hit potential in all lighting conditions—without the use of batteries.EXCEPTIONAL ANY-LIGHT PERFORMANCE: Trijicon® Fiber Optics automatically adjust the brightness level and contrast of the reticle to available light conditions.FASTER TARGET ACQUISITION: Tritium-phosphor lamp glows in low-light conditions for quick target acquisition. Lamp is guaranteed to illuminate for 15 years.LIGHTWEIGHT RUGGEDNESS: Forged 7075-T6 aircraft-grade-aluminum housing provides extreme durability in a compact design and will withstand the shock pattern of all crossbows.ZERO DISTORTION: Multi-coated, broadband, anti-reflective-coated lenses provide superior clarity and light-gathering capabilities with zero distortion.INTERNALLY ADJUSTABLE: Since only the prism housing moves, the Trijicon ACOG® XB is much more rugged than conventional designs.WATERPROOF TO 20 METERS (66 ft.): Dry nitrogen-filled to prevent fogging. |
| Product short description |

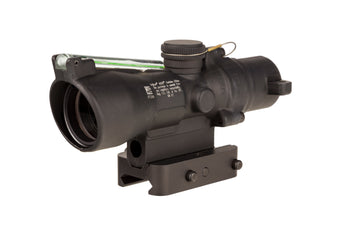

Dual Illuminated Green Chevron 340-400 fps Bolt Drop Reticle w/ Mount with Trijicon Q-LOC™ Technology |
| Related products |
TA50-C-400391, TA50-C-400393, |
| Science of brilliant |
Alaska to Africa, Immersion, Solid Zero, Vibration, Drop, |
| Width |
53,34 |
