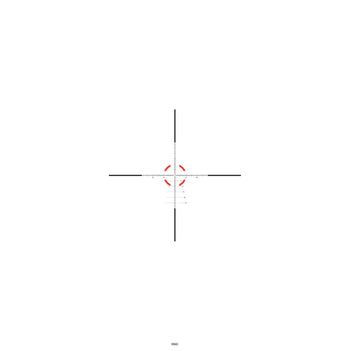

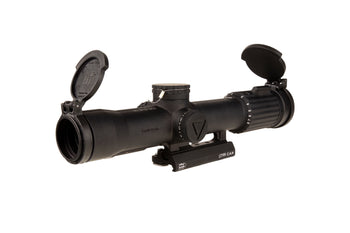

The Trijicon 1-8x28 VCOG® (Variable Combat Optical Gunsight) Commercial SCO is a highly rugged, variable magnification riflescope designed for close quarter battle (CQB) and long distance marksmanship. This offering is functionally identical to the USMC Squad Common Optic (SCO) VCOG. With a forged aircraft-grade 7075-T6 aluminum housing, the VCOG® is nearly indestructible. Superior glass provides exceptional clarity and color with zero distortion. The universal segmented circle / MRAD crosshair dot with wind holds reticle is designed for multi-platform use, accommodating multiple calibers, ammunition weights, and barrel lengths. The first focal plane reticle allows subtensions and drops to remain true at any magnification, allowing the shooter to quickly and accurately apply the correct hold. With ruggedized electronics, the LED reticle is robust enough for any application. Powered by a lithium AA battery (provided), the 1-8x28 VCOG offers a battery life of 633 hours at setting 6. Choose from 11 user-selectable brightness settings, 2 night vision settings, 8 day settings, and 1 super-bright setting. An integrated dial fin allows easy rotation through the magnification range, and a near-constant eye relief means no head or stock position adjustments are needed. Waterproof to 20 meters (66 ft.).
The Trijicon 1-8x28 VCOG® (Variable Combat Optical Gunsight) Commercial SCO is a highly rugged, variable magnification riflescope designed for close quarter battle (CQB) and long distance marksmanship. This offering is functionally identical to the USMC Squad Common Optic (SCO) VCOG. With a forged aircraft-grade 7075-T6 aluminum housing, the VCOG® is nearly indestructible. Superior glass provides exceptional clarity and color with zero distortion. The universal segmented circle / MRAD crosshair dot with wind holds reticle is designed for multi-platform use, accommodating multiple calibers, ammunition weights, and barrel lengths. The first focal plane reticle allows subtensions and drops to remain true at any magnification, allowing the shooter to quickly and accurately apply the correct hold. With ruggedized electronics, the LED reticle is robust enough for any application. Powered by a lithium AA battery (provided), the 1-8x28 VCOG offers a battery life of 633 hours at setting 6. Choose from 11 user-selectable brightness settings, 2 night vision settings, 8 day settings, and 1 super-bright setting. An integrated dial fin allows easy rotation through the magnification range, and a near-constant eye relief means no head or stock position adjustments are needed. Waterproof to 20 meters (66 ft.).
| Weight |
0.907 kg |
| Adjustment |
0.1 MRAD per click |
| Adjustment range |
35 MRAD |
| Battery life |
633 hours (26.4 days) at setting 6 |
| Bindon aiming concept bac |
Yes |
| Exit pupil |
10,41 |
| Eye relief |
101,6 |
| Field of view degrees |
20 |
| Field of view feet |
36,4 |
| Finish |
Matte Black |
| Height |
71,12 |
| Housing material |
7075-T6 forged aluminum |
| Illumination settings |
11 Total Settings: 2 Night Vision, 8 Day, and 1 Super-Bright Setting |
| Illumination source |
LED |
| Included accessories |
Larue Tactical® LT799 Mount,Tenebraex® Flip Caps, Soft Carrying Case, Lithium AA Battery, LENSPEN® (TA56), Trijicon Logo Sticker (PR15), Manual, Warranty Card |
| Length |
277,62 |
| Magnification |
1 |
| Max exit pupil |
3,56 |
| Max field of view |
4,37 |
| Max field of view degress |
2,5 |
| Mount |
Larue Tactical® LT799 Mount |
| Objective size |
28 |
| Power source |
AA Lithium or Alkaline Battery |
| Product features |
SUPERIOR QUALITY GLASS: Multi-coated lenses provide superior clarity and light-gathering capabilities with zero distortionVIRTUALLY INDESTRUCTIBLE: Tested to MIL-STD-810G, a series of tests approved by the U.S. Department of Defense to simulate conditions in the field.RAPID TARGET ACQUISITION: First focal plane reticle allows user to rapidly acquire target and apply correct hold throughout magnification range.BRIGHT, CRISP ILLUMINATION: Brilliantly illuminated reticle is powered by a single AA battery.QUICK, ACCURATE RANGING RETICLES: 1-6x24 offers BDC or Universal MRAD and MOA reticles; 1-8x28 offers Universal MRAD and MOA reticlesEASY-TO-SET ADJUSTERS: Allows user to easily adjust windage and elevation.NO RINGS NEEDED: The need for conventional ring mounts is eliminated with the integrated mounting adapter that provides quick and easy mounting to any rail system. Compatible with many rails in the marketplace designed to fit the Trijicon ACOG®.ADJUSTABLE BRIGHTNESS SETTINGS: Multiple brightness settings with an “off” between each setting. 1-8x28 models feature 11 brightness settings, 1-6x24 models feature 6 brightness settings.QUICK MAGNIFICATION ADJUSTMENTS: Integrated dial fin allows easy rotation through magnification settings. |
| Product short description |
Red MRAD Tree Reticle , Flip caps, w/ Larue Tactical® LT799 Mount |
| Related products |
VC18-C-2400001, VC18-C-2400003, |
| Width |
73,91 |
